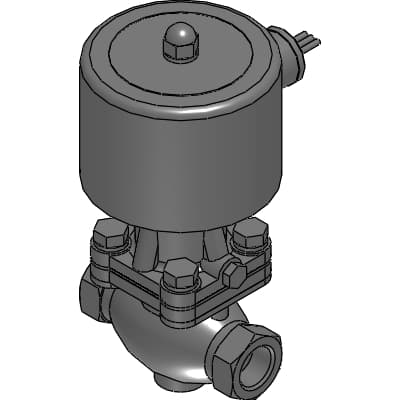

Product Model
PVS-15A-210-AC100V
Selling Points
- 1Stable Operation: Utilizes a 3-port pilot valve for consistent performance.
- 2Long Lifespan: Designed for general-purpose use with a durable construction.
- 3Versatile Port Sizes: Available in Rc1/2 to 80 flange sizes for various applications.
- 4Wide Working Pressure Range: Operates effectively within 0.05 to 1 MPa.
- 5Electric Specifications: Compatible with 100 VAC 50/60 Hz and 200 VAC 50/60 Hz.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | PVS | Port size | 15A : Rc1/2 |
Actuation | Blank : NC | Coil options | Blank : Open frame lead wire coil |
Voltage | AC100V : 100 VAC 50/60 Hz | A | 90mm |
B | 152mm | C | 29mm |
D | 107mm | E | 27mm |
F | -mm | G | 84mm |
H | 61mm |
Specifications may be subject to change without notice
