Product Model

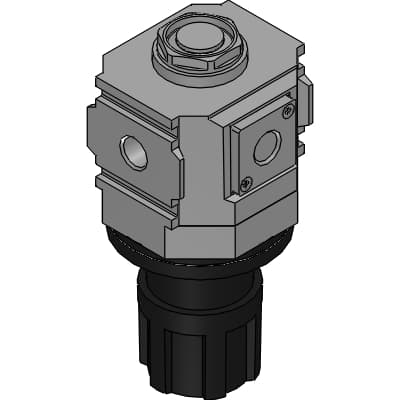

R3000-8-W-TP6
Selling Points
- No selling points available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | R3000 | Port size | 8 : 1/4 |
Port thread type | Blank : Rc thread | Pressure range | Blank : 0.05 to 0.85 MPa |
Relief | Blank : With relief mechanism | Pressure gauge | T : Without pressure gauge (gauge port (Rc1/4) assembled seald) |
Flow direction | Blank : Standard flow (left → right), knob is on the bottom | Displayed unit | Blank : MPa display, Rc thread |
Piping adaptor set (included) | Blank : Not attached | Adaptor thread type | Blank : None |
Attachment bracket type | Blank : Not attached | Infotext | https://www.ckd.co.jp/kiki/en/product/detail/390/R%E2%80%BB%E2%80%BB00-P6?t=list&cid=69&sid=0 |
Specifications may be subject to change without notice
