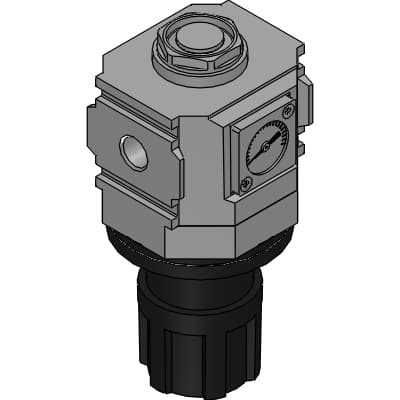

Product Model
R6100-20-W
Selling Points
- 1Compact design for easy installation and space-saving.
- 2Embedded pressure gauge for precise pressure monitoring.
- 3Tool-free pressure adjustment for quick and easy settings.
- 4Versatile options including copper and ozone-proof variations.
- 5Durable construction suitable for diverse industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | R6100 | Port size | 20 : 3/4 |
Port thread | Blank : Rc thread | Pressure range | Blank : 0.05 to 0.85 MPa |
Relief | Blank : With relief mechanism | Pressure gauge | Blank : Standard pressure gauge (G401-W) |
Flow direction | Blank : Standard flow (left → right), knob is on the bottom | Display unit | Blank : MPa display (Rc thread), psi display (NPT thread), bar display (G thread) |
Piping adaptor set (included) | Blank : Not included | Adaptor thread | Blank : None |
Other attachments (bracket) | Blank : Not included | Other attachments (Pressure gauge) | Blank : Not included |
Other attachments (pressure sensor) | Blank : Not included |
Specifications may be subject to change without notice
