Product Model

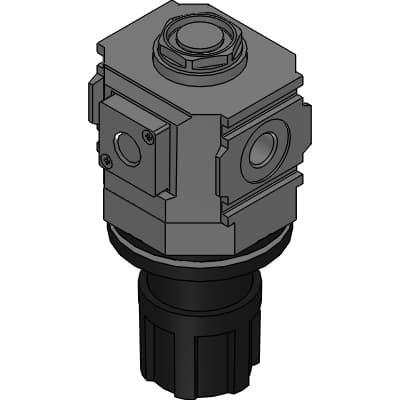

RN4000-8-T
Selling Points
- 1The RN4000-8-T features a unified modular design, integrating filters, regulators, and lubricators into a single compact module.
- 2Constructed with hybrid materials (aluminum die cast body and resin cover), it reduces weight by 50% and ensures corrosion resistance.
- 3The pressure gauge is embedded into the body, saving space and enhancing safety by eliminating protruding components.
- 4Equipped with CKD's original chemical fiber structure, this element reduces clogging and extends its lifespan significantly.
- 5The regulator includes a mechanism to prevent oil dripping during primary side pressure drops, ensuring reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | RN4000 | Port size | 8 : Rc1/4 |
Pressure range | Blank : 0.05 to 0.85 MPa | Pressure relief | Blank : With relief mechanism |
Pressure gauge | T : No pressure gauge (gauge port is assembled sealed) | Flow direction | Blank : Standard flow (left to right) |
Other attachments | Blank : Not attached | Attachment gauge type | Blank : None |
Infotext | https://www.ckd.co.jp/kiki/en/product/detail/391/RN%E2%80%BB000?t=list&cid=69&sid=0 |
Specifications may be subject to change without notice
