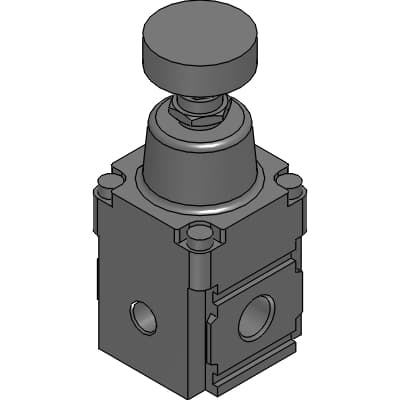

Product Model
RP1000-8-02
Selling Points
- 1Achieves precise pressure control within the range of 0.003 to 0.2 MPa.
- 2Compact size of □42 mm with minimal pressure drop and stable flow characteristics.
- 3High repeatability of ±0.5% of full scale and sensitivity within 0.1% of full scale.
- 4Long service life due to low-sliding packing used in moving parts.
- 5Ideal for applications requiring low pressure settings, such as air pressure supply systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | RP1000 | Port size | 8: 1/4 |
Type of thread | Blank : Rc thread (MPa) | Setting pressure range | 02: MAX. 0.2 MPa |
Attachment gauge type | Blank : Without attachment | Attachment bracket type | Blank : Without attachment |
Specifications may be subject to change without notice
