Product Model

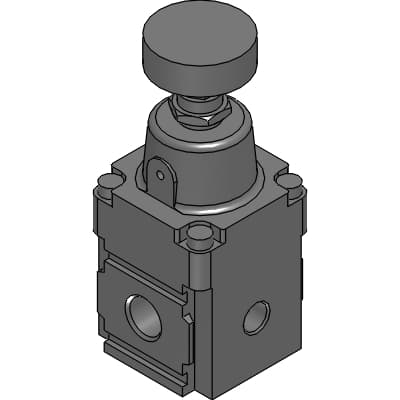

RPE1000-8-07
Selling Points
- 1High precision pressure control with sensitivity within 0.2% of full scale.
- 2Significant reduction in air consumption, up to 70% less than conventional products.
- 3Compact design measuring 42 mm in size and weighing only 250 grams.
- 4Excellent control performance suitable for precise tension control and various industrial applications.
- 5Repeatability within ±0.5% of full scale for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | RPE1000 | Port size | 8 : 1/4 |
Type of thread | Blank : Rc thread (MPa) | Setting pressure range | 07 : MAX. 0.7 MPa |
Attachment gauge type | Blank : Without attachment | Attachment bracket type | Blank : Without attachment |
Infotext | https://www.ckd.co.jp/kiki/en/product/detail/394/RPE?t=list&cid=69&sid=0 |
Specifications may be subject to change without notice
