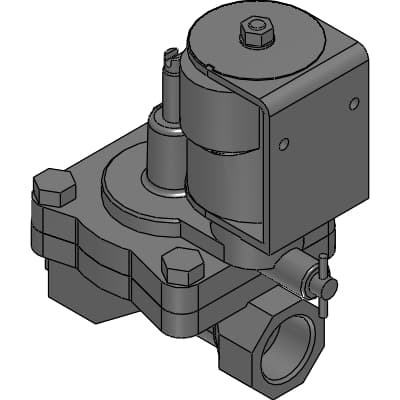

Product Model
RSV-20A-210K-DC24V
Selling Points
- 1Low Water Hammer: Minimizes pressure shock and ensures smooth operation.
- 2Self-Cleaning Filter: Protects the pilot flow path with an easy-to-clean filter.
- 3Adjustable Flow Rate: Allows for precise control over water flow rates.
- 4Durable Construction: Built with epoxy resin molded coil and stainless steel components for long-lasting performance.
- 5IP67 Rating: Provides excellent protection against dust and water ingress, ensuring reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | RSV | Port size | 20A : Rc3/4 |
Body material | K : Bronze | Coil housing | Blank : Std. S.S. core (continuously energized) |
Voltage | DC24V : 24 VDC | A | 100mm |
B | 129mm | C | 35mm |
D | -mm | E | 18mm |
F | -mm | n-G | - |
d | Rc3/4 |
Specifications may be subject to change without notice
