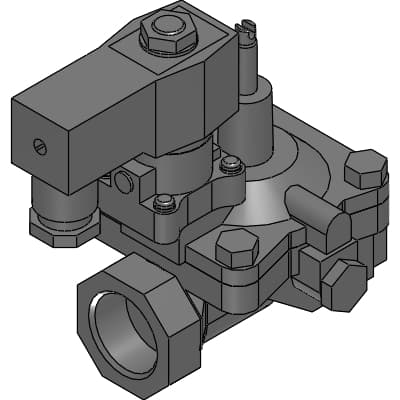

Product Model
RSV-25A-210W-2G011-AC100V
Selling Points
- 1Free 3D CAD models available for download.
- 2Compatible with SOLIDWORKS, Inventor, Creo, Siemens NX, CATIA, SolidEdge, Autocad, Revit.
- 3Ideal for designing general purpose valves.
- 4High-resolution models for precise engineering.
- 5Easy integration into various CAD software systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | RSV | Port size | 25A : Rc1 |
Coil housing | 2G : Coil with DIN terminal box (for housing facilities) | Strainer | 0 : None, Standard |
Voltage | AC100V : 100 VAC 50/60 Hz | A | 105mm |
B | 22mm | C | 141mm |
D | Rc1mm |
Specifications may be subject to change without notice
