Product Model

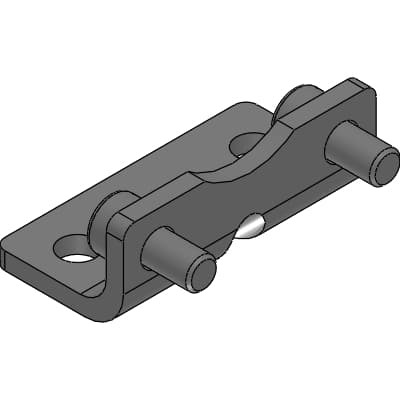

S1-LB-50
Selling Points
- 1Designed for precise applications with high accuracy.
- 2Compatible with SCA2, JSC3, USC, and foot configurations.
- 3Built with polypropylene for long-lasting performance.
- 4Simple setup with minimal alterations required.
- 5Meets the standards for industrial use with reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | S1-LB-50 | Bore size | 50mm |
LA | 200mm | LB | 12mm |
LC | 22.0mm | LD | 9mm |
LF | 15mm | LG | 145mm |
LH | 40mm | LR | 46mm |
LS | 66mm | LT | 4.5mm |
DBP | 18mm |
Specifications may be subject to change without notice
