Product Model

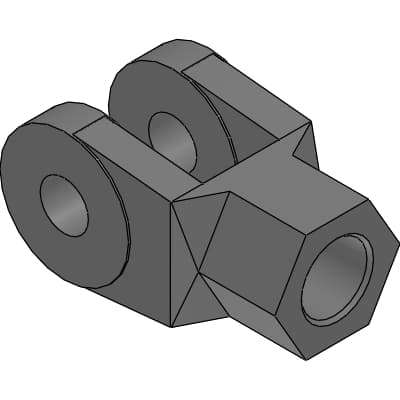

S1-Y-40
Selling Points
- 1Made from durable cast iron for long-lasting performance.
- 2Double notched knuckle joint for versatile applications.
- 3Compatible with M14 thread size for straightforward setup.
- 4Designed for precise movements in various industrial settings.
- 5Includes pin and retaining rings for secure assembly.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | S1-Y-40 | Applicable bore size | 40mm |
AB | 24mm | CA | 50mm |
CD | 12mm | CV | 36mm |
CW | 18mm | D | 27mm |
E | 31.2mm | Thread | M14 x 1.5 |
MB | 19mm | RR | 16mm |
WEIGHT | 0.25kg |
Specifications may be subject to change without notice
