Product Model

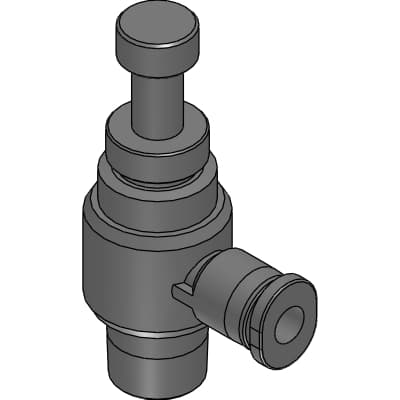

SC3P-M5-4
Selling Points
- 1One-Touch Operation: Effortless control with a single touch.
- 2High Pressure Tolerance: Proof pressure up to 1.5 MPa for reliable operation.
- 3Temperature Flexibility: Fluid temperature range from 5°C to 60°C.
- 4Compact Design: M5 port size for space-efficient installations.
- 5Compressed Air Compatible: Designed for use with compressed air in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | SC3P | Port size | M5: M5 x 0.8 |
Applicable tube O.D.∅ | 4: φ4mm | Option | Blank: Meter-out control |
M | M5 x 0.8 | A | 3.2mm |
Position of knob | 29.7mm | L1 | 26.5mm |
L2 | 6.4mm | P1 | 8.0mm |
P2 | 9.8mm | C | 11.3mm |
E | 15.7mm | H | 8mm |
X | -mm | Y | 9.8mm |
Z | 7.8mm |
Specifications may be subject to change without notice
