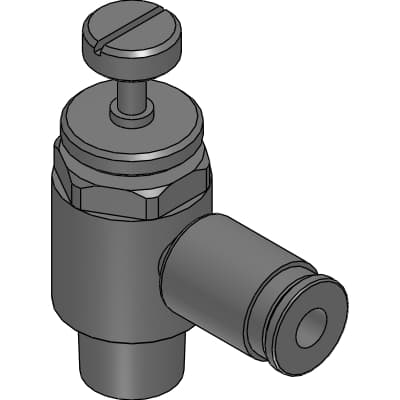

Product Model
SC3W-M5-4
Selling Points
- 1One-Touch Operation: Easily adjust fluid flow with a single touch.
- 2High Proof Pressure: Withstands up to 1.5 MPa (220 psi, 15 bar) for reliable performance.
- 3Flexible Piping Direction: Allows for versatile installation in various applications.
- 4Flame-Resistant Material: Meets UL94 Standards V-0 equivalent for safety in harsh environments.
- 5Compact Design: Weighs only 8.8 grams, ideal for space-constrained setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | SC3W | Port size | M5 : M5 x 0.8 |
Applicable tube O.D.∅ | 4 : Ø4mm | Option | Blank : Meter-out |
Thread | M5x0.8 | A | 3.4mm |
B | 12.4mm | CMAX | 30.2mm |
CMIN | 27.2mm | C | 0mm |
D | 9.6mm | E | 6.0mm |
F | 8.8mm | G | 17.2mm |
tube insertion length | 12.9mm | Opposite side of hexagon | 8mm |
Specifications may be subject to change without notice
