CKD CorporationCylinders with brake/lock
Product Model

SCG-B3-50

Manufacturer

CKD Corporation

Category

Cylinders with brake/lock

Product ID

51315

In Stock
Last updated: 2025/4/17
View Specifications

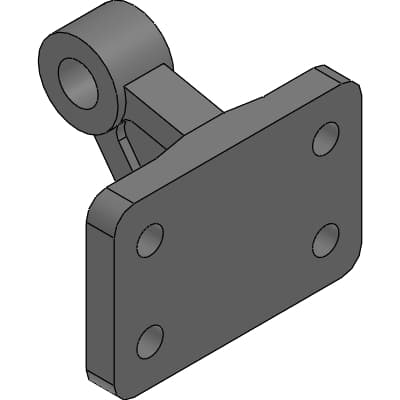

CKD Corporation SCG-B3-50

Selling Points

  • 1Customize the stroke length from 25 to 150 mm to fit your specific needs.
  • 2Ensure reliable performance with double-acting operation, suitable for both forward and reverse movements.
  • 3Choose from various mounting options, including head side trunnion and rod side trunnion, for flexible installation.
  • 4Withstand up to 1.6 MPa (230 psi) working pressure and 8.0 MPa (1160 psi) proof pressure.
  • 5Select from air cushion or rubber cushion for optimal performance and durability.
Product Details
SCG-B3-50
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
SCG-B3-50
Applicable bore size
50, 63mm
C
9.0mm
CD
14mm
CF
45mm
CQ
20mm
D
18mm
F
8mm
G
7mm
K
81mm
KA
53mm
KB
28.0mm
MR
14mm
SD
60mm
SE
30mm
WEIGHT
0.45kg

Specifications may be subject to change without notice
