CKD Corporation SCG-I-32

Selling Points

  • 1Compact and reliable standard type cylinder with two medium-diameter tie rods.
  • 2Highly customizable with options for cylinder inner diameter, stroke length, and additional functions.
  • 3Suitable for various environments and applications, including low-friction and non-copper-based materials.
  • 4Equipped with air cushion on both sides for enhanced stability and durability.
  • 5Available in multiple configurations to meet specific operational needs, ensuring optimal performance in diverse settings.
Product Details

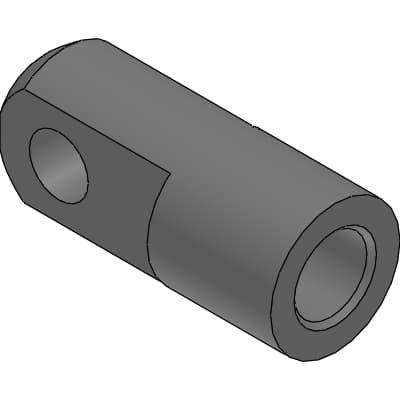

SCG-I-32
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
SCG-I-32
Applicable bore size
32mm
AA
14mm
CA
30mm
CD
10mm
CW
14mm
D
20mm
Thread
M10 x 1.25
L
40mm
MA
16mm
RR
12.0mm
WEIGHT
0.07kg

Specifications may be subject to change without notice
