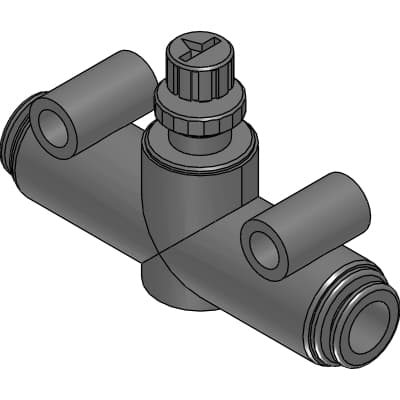

Product Model
SCL2-10-H88
Selling Points
- 1Remote and Centralized Control: Conveniently control actuators from a distance or centrally.
- 2Wide Tube Diameter Compatibility: Compatible with tube diameters from φ1.8 to φ12.
- 3High Flow Rate: Achieves high flow rates even with a compact body.
- 4Ozone-Resistant Materials: Standard ozone-resistant materials ensure product longevity.
- 5360° Mounting Flexibility: Rotates by 360° for unrestricted mounting options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model | SCL2 | Body size | 10: 3/8 thread equivalent |
Applicable tube O.D. | H88: φ 8 | Flow charasteristics | Blank: Standrad type |
Piping size O.D. | φ 8 | Position of knob | 44.0mm |
B | 29.7mm | C | 20.0mm |
D | 5.1mm | E | 71.0mm |
F1 | 20.0mm | F2 | 20.5mm |
G | 11.0mm | I | 11.5mm |
J | 47.0mm | K | 20 x n +3 |
L | 3.6mm | Installation hole | 4.3mm |
tube insert length | 19mm |
Specifications may be subject to change without notice
