CKD CorporationHanging type
Product Model

SCM-Y-25

Manufacturer

CKD Corporation

Category

Hanging type

Product ID

52713

In Stock
Last updated: 2025/4/20
View Specifications

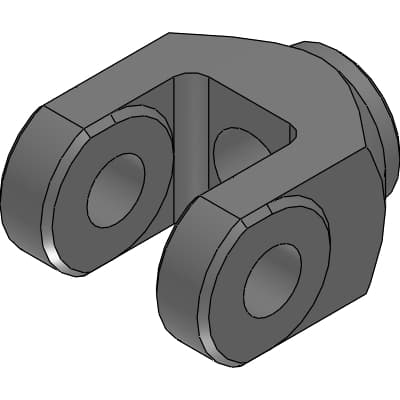

CKD Corporation SCM-Y-25

Selling Points

  • 1High-Quality Material: Made from durable cast iron for long-lasting reliability.
  • 2Double Notched Knuckle Joint: Ensures secure and precise mounting with a double notched design.
  • 3Versatile Thread Options: Available in M18 thread size with a 1.5mm pitch for versatile applications.
  • 4Easy Installation: Designed for straightforward mounting with a female thread, simplifying setup processes.
  • 5Fast Shipping: Ships within 4 days or less, ensuring timely delivery for your projects.
Product Details
SCM-Y-25
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
SCM-Y-25
Bore size
25
A
41mm
AB
16.0mm
CA
30mm
CD
10mm
CV
20mm
CW
10mm
E
20mm
KK
M10x1.25
MB
14.0mm
RR
17.1mm
RS
4.5mm
Applicable pin No.
SCM-P-25
Weight
85g

Specifications may be subject to change without notice
