Product Model

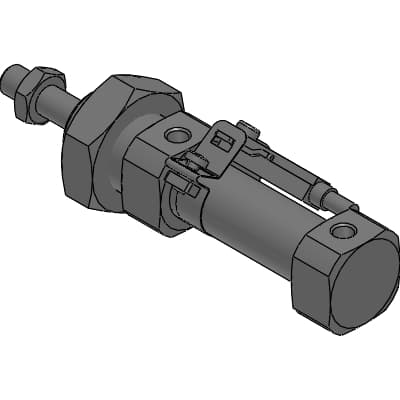

SCWR-L-00-16-10-T0H-R(0)
Selling Points
- 1Meets international standards for interchangeability and ease of use.
- 2Durable and resistant to corrosion, suitable for multiple environments.
- 3Programmable controller with serial connection and no indicator lamp.
- 4Suitable for double acting operations with switch, ideal for clean compressed air applications.
- 5Switch is directly clipped into switch bracket with three-side contact, ensuring safe and reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | SCWR-L | Mounting | 00: Basic |
Bore size | 16mm | Stroke | 10mm |
POS | 0mm | Switch model No. | T0: Reed, 1-color display, 2-wire |
Lead wire direction | H: Straight | Lead wire length | Blank: 1 m (standard) |
Switch quantity | R: 1 on rod side | A | 16mm |
B | 10mm | BF | 17mm |
D | 21.5mm | E | 18.0mm |
EE | M5 | G | 13.6mm |
J | 13.6mm | KV | 24mm |
KK | M6×1 | KW | -mm |
BE | M16×1.5 | L | -mm |
MR | -mm | CD | -mm |
EW | -mm | F | -mm |
MD | 16mm | MM | 6mm |
D’ | 21.5mm | E‘ | 18.0mm |
QA | 9.1mm | QB | 9.1mm |
T | 3.6mm | WF | 22mm |
XC | -mm | LL | 51.0mm |
X | 89mm | CA | -mm |
RD | 2.0mm | HD | 3.5mm |
GC | 0.0mm | GD | 0.0mm |
P | 15.5mm | P1 | -mm |
Pθ | -° |
Specifications may be subject to change without notice
