Product Model

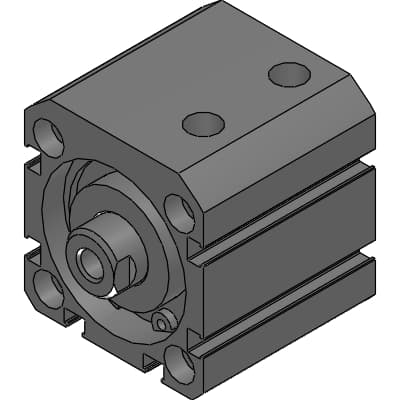

SCWS-20-5
Selling Points
- 1Compact and lightweight design for easy installation and movement.
- 2Robust safety features with embedded tie rods and guide rings for stability.
- 3Adjustable cushion needle valve for customizable air cushion length and energy absorption.
- 4ISO compliant pneumatic cylinder with standard magnetic switches for reliable operation.
- 5Versatile switch arrangement options to meet various customer requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | SCWS | Bore size | 20mm |
Stroke | 5mm | POS | 0mm |
Cushion | Blank: With cushion rubber | Option | Blank: Rod end female thread |
Option | None | Mounting | Blank: No mounting bracket |
ZB | 43mm | ZA | 37mm |
C | 10.5mm | D | 7.5mm |
EE | M5mm | E | 36.0mm |
E1 | 0mm | EA | 0.0mm |
EB | 0.0mm | BB | 0mm |
FA | 18.5mm | FB | 12.5mm |
RR | 4.3mm | LA | ⌀7.5 spot faced depth 5mm |
K | 47mm | KA | M5 depth 10mm |
KK | M6 depth 12mm | M | 8mm |
MM | 10mm | TG | 22.0mm |
WF | 6mm | A | 16mm |
CC | 13mm | H | 13mm |
KKK | M8mm | M1 | 8mm |
T | 5mm |
Specifications may be subject to change without notice
