Product Model

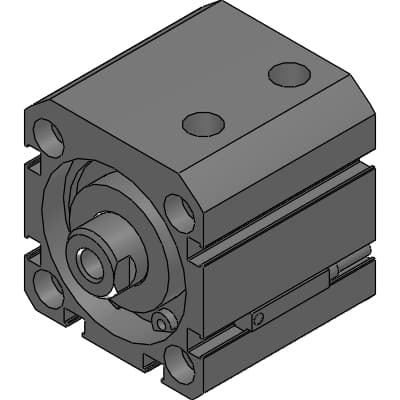

SCWS-L-80-5-T0H-R
Selling Points
- 1High Precision: Conforms to ISO6432 standard for precise performance.
- 2Durable Construction: Made from stainless steel for long-lasting reliability.
- 3Versatile Mounting: Offers various mounting styles including axial foot and rod eye with thread type.
- 4Easy Installation: Switches can be optionally mounted to meet different needs.
- 5Enhanced Safety: Equipped with a reed switch and locking gasket for secure operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | SCWS-L | Bore size | 80mm |
Stroke | 5mm | POS | 0mm |
Cushion | Blank: With cushion rubber | Switch model No. | T0: Reed, 1-color display, 2-wire |
Lead wire direction | H: Straight | Lead wire length | Blank: 1 m (standard) |
Switch quantity | R: 1 included on rod side | Option | Blank: Rod end female thread |
Option | None | Mounting | Blank: No mounting bracket |
ZB | 64mm | ZA | 54mm |
C | 18.5mm | D | 14.0mm |
EE | G1/8mm | E | 94.0mm |
E1 | 0mm | EA | 0.0mm |
EB | 0.0mm | BB | 20mm |
FA | 47.5mm | FB | 38.5mm |
RR | 8.7mm | LA | ⌀14 spot face depth 5mm |
K | 125mm | KA | M10 depth 15mm |
KK | M12 depth 21mm | M | 22mm |
MM | 25mm | TG | 72.0mm |
WF | 10mm | A | 28mm |
CC | 25mm | H | 24mm |
KKK | M16mm | M1 | 22mm |
T | 10mm |
Specifications may be subject to change without notice
