Product Model

SCWS-LB-32lb

In Stock
Last updated: 2025/4/18

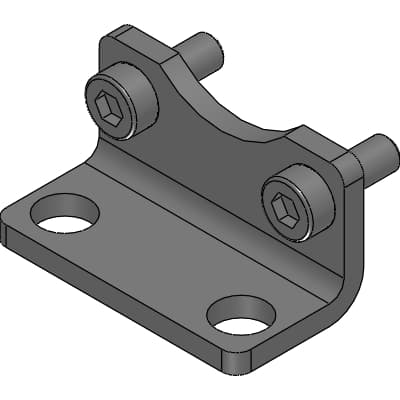

CKD Corporation SCWS-LB-32lb

Selling Points

  • 1Designed with safety and convenience in mind, enhancing user experience.
  • 2New cylinder series focusing on environmental protection.
  • 3Meets international standards for quality and performance.
  • 4Suitable for positioning, conveyance, press-fitting, and semi-automated facilities.
  • 5Exhausting orifice and cushion regulate needle valve on the same plane for easy installation and adjustment.
Product Details
SCWS-LB-32lb
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model
SCWS-LB-32
Bore
32
AB
7.0mm
AL
24.5mm
AR
15mm
AG
58.0mm
TR
32mm
E
45mm
AT
4mm
AH
33.5mm
AO
6.0mm
AU
16mm
WF
7mm
XA
67mm
SA
76mm
G
M6x16mm

Specifications may be subject to change without notice
