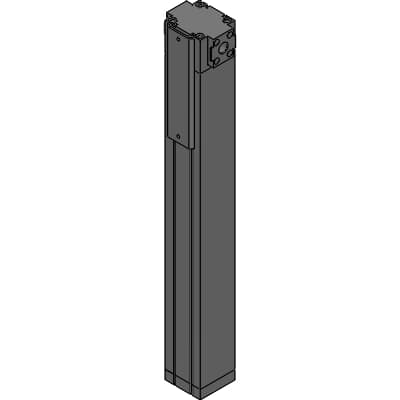

Product Model
SD4050-B05
Selling Points
- No selling points available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | SD4050 | Outlet air atmospheric dew point | B : -40°C |
Inlet air pressure | 05 : 0.5 MPa | Option : Bracket | Blank : None |
Option : Common exhaust | Blank : None | Option : Reversed inlet and outlet | Blank : None |
Infotext | https://www.ckd.co.jp/kiki/en/product/detail/84/SD%E3%83%BBSU%E3%83%BBSDM?t=list&cid=75&sid=0 | A | 565mm |
B | 100mm | C | 90mm |
D | 79mm | E | Rc 1/2 |
F | 605mm | G | 70mm |
H | 32.5mm | I | 10.0mm |
J | 585mm | K | 9mm |
L | 50mm | M | 10mm |
Specifications may be subject to change without notice
