Product Model

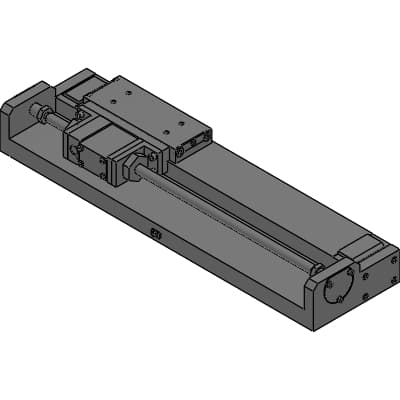

SRT3-00-63B-200
Selling Points
- 1High precision guided rodless cylinder design for precise applications.
- 2Custom stroke length available in 1 mm increments for tailored solutions.
- 3Compatible with compressed air, operating at max. 0.7 MPa and min. 0.2 MPa.
- 4Durable construction with a max. working pressure of 1.05 MPa and ambient temperature range of 5°C to 60°C.
- 5Integrated switch options including proximity switches for enhanced control and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | SRT3 | Mounting | 00: Basic |
Bore size | 63mm | Stroke | 200mm |
Cushion | B: With two-sided cushion | Option | None |
Lot position | 0mm | A | 209.0mm |
B | 35.0mm | C | 95mm |
D | 50mm | DC | 39mm |
DD | 42.0mm | F | 59.0mm |
G | 112mm | H | 105mm |
HA | 35.0mm | HB | 52.0mm |
HC | 20mm | I | 68mm |
J | 58.0mm | KA | 168.0mm |
L + stroke | 536mm | L | 336mm |
LL + stroke | 544mm | LL | 344mm |
M | - | N | M10 depth 15 |
O | 9.7mm | P + STROKE | 458mm |
P | 258mm | Q | Rc1/8 |
R | Rc3/8 | S | 93.0mm |
T | 84mm | TA | 168mm |
TB | 110mm | TC | 102mm |
TD | 40mm | TE | M8 depth 13 |
TG | -mm | U | 39.0mm |
W | 1mm | XF | 210.0mm |
YA | 98.5mm | YB | 89mm |
YC | 9.0mm | YD | 10mm |
Product information | Product information |
Specifications may be subject to change without notice
