Product Model

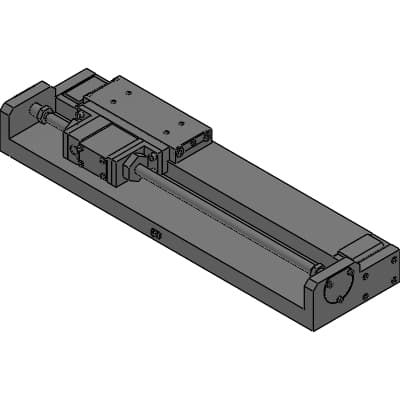

SRT3-00-63B-200-M0H-R
Selling Points
- 1High-Performance Rodless Cylinder: Designed for demanding applications with double acting and compressed air operation.
- 2Customizable Stroke Lengths: Available in various bore sizes (ø12 to ø63) and customizable stroke lengths up to 200 mm.
- 3Brake Functionality: Equipped with a reliable brake system for precise control and safety.
- 4Durable Construction: Built with robust materials to withstand high pressures (max. working pressure: 0.7 MPa).
- 5Versatile Mounting Options: Compatible with basic and axial foot mounting brackets for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | SRT3 | Mounting | 00: Basic |
Bore size | 63mm | Stroke | 200mm |
Cushion | B: With two-sided cushion | Switch model No. | M0, reed, 1-color LED, 2-wire |
Lead wire direction | H: Straight | Lead wire length | Blank: 1 m (standard) |
Switch quantity | R: 1 on R side | Option | None |
Lot position | 0mm | A | 209.0mm |
B | 35.0mm | C | 95mm |
D | 50mm | DC | 39mm |
DD | 42.0mm | F | 59.0mm |
G | 112mm | H | 105mm |
HA | 35.0mm | HB | 52.0mm |
HC | 20mm | I | 68mm |
J | 58.0mm | KA | 168.0mm |
L + stroke | 536mm | L | 336mm |
LL + stroke | 544mm | LL | 344mm |
M | - | N | M10 depth 15 |
O | 9.7mm | P + STROKE | 458mm |
P | 258mm | Q | Rc1/8 |
R | Rc3/8 | S | 93.0mm |
T | 84.0mm | TA | 168mm |
TB | 110mm | TC | 102mm |
TD | 40mm | TE | M8 depth 13 |
TG | -mm | U | 39.0mm |
W | 1mm | XF | 210.0mm |
YA | 98.5mm | YB | 89mm |
YC | 9.0mm | YD | 10mm |
Product information | Product information |
Specifications may be subject to change without notice
