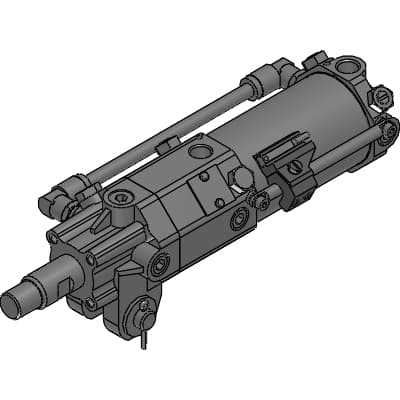

Product Model
UCAC2-A-50-50-F-T0H-R
Selling Points
- 1Advanced swash plate locking mechanism for secure position holding.
- 2Double-acting operation for efficient and reliable performance.
- 3Customizable switch options (T0H) for precise control and safety.
- 4Compatible with compressed air, suitable for various industrial applications.
- 5Robust construction with steel material and zinc chromate treatment for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | UCAC2 | Bore size | 50mm |
Clevis width | A: 16.5 mmmm | Port thread | Blank: Rc thread |
Cushion | Blank/H: Head side cushioned | Stroke | 50mm |
Stroke position | 0mm | Speed adjustment needle | Blank: With both sides |
Lock direction/bypass tube position | F: Forward lock (bypass tube position F, port position F1) | Switch model No. | T0: Reed, 1-color LED, 2-wire |
Lead wire direction | H: Straight | Lead wire | Blank: None |
Lead wire length | Blank: 1 m Lead wire | Switch option | Blank: None |
Switch quantity | R: 1 on rod side | Switch mounting position | Blank: A position |
Accessory | Blank: Without accessory (rod eye) | Bellows | Blank: None |
Accessory | Blank: None | Limit switch mounting base | Blank: None |
Product information | Product information | A | 60mm |
B | 69mm | C | 30mm |
D | 50mm | E | 60mm |
F | 61mm | G | -mm |
L | 141mm | LL | 172mm |
X | 253mm | θ | -° |
Specifications may be subject to change without notice
