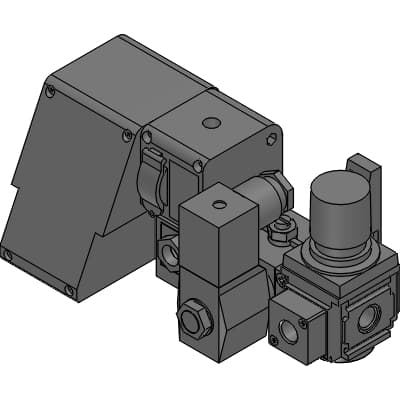

Product Model
UGPS2-05-15-1NGTL-2E-1
Selling Points
- 1The air bridge circuit prevents fluctuations in supply pressure, ensuring consistent performance.
- 2Easily adjust sensitivity with the scale on the sensitivity adjustment dial for precise detection.
- 3Designed to operate in environments where water may splash, with a degree of protection equivalent to IP67.
- 4Low air consumption rate allows for efficient operation with a working pressure of 0.03 MPa.
- 5Suitable for various industrial applications, including jig-related tasks, with modular units and aluminum die-cast bodies for increased strength.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | UGPS2 | Orifice size | 05 : φ 0.5 |
Setting type | 15 : Dial detection nozzle diameter | Station no. | 1 : 1 station |
Output style | N : NPN open collector | Lamp color | G : Green |
Electric connection option | TL : Lead wire type common terminal box left assembly | Attachments and others | Blank : None |
Pressure gauge | Blank : None | Solenoid valve electric connection | 2E : DIN terminal box |
Solenoid valve voltage | 1 : 100 VAC | A | 123mm |
B | 54.5mm | C | -mm |
Weight | 1190g |
Specifications may be subject to change without notice
