Product Model

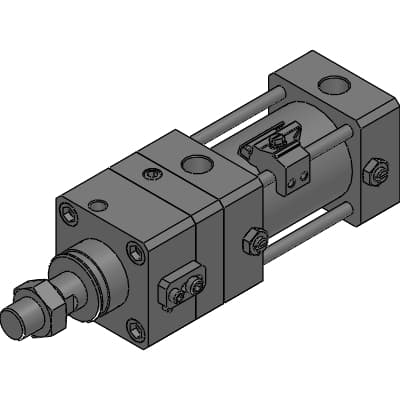

USC-00-50B-25-F-T0H-R
Selling Points
- 1High Precision: Achieve precise operations with an index precision of ±30 seconds and repeatability of ±5 seconds.
- 2Robust Construction: Built to withstand harsh environments with operating ambient temperatures from 0 to 45°C and storage temperatures from -20 to 80°C.
- 3Versatile Applications: Suitable for a wide range of applications due to its adaptable design and customizable options.
- 4Reliable Performance: Equipped with a motor insulation class F, withstanding 1500 VAC for 1 minute and maintaining 10 MΩ insulation resistance at 500 VDC.
- 5Durable Components: Features durable components including stainless steel piston rod material and robust terminal box designs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | USC: Double acting/single rod | Mounting | 00: Basic |
Bore size | 50mm | Cushion | B: With two-sided cushion |
Stroke | 25mm | Lock direction | F: Forward locking |
Switch model No. | T0: Reed, 1-color LED, 2-wire | Lead wire direction | H: Straight |
Lead wire length | Blank: 1 m (standard) | Switch quantity | R: 1 on rod side |
Option bellows | Blank: None | Optional piston rod material | Blank: None |
Option cushion needle position | Blank: Cushion needle position R (standard) | Option: copper and PTFE free | Blank: None |
Accessory | Blank: None | Accessory | Blank: None |
Accessory | Blank: None | Stroke position | 0mm |
Product information | Product information | A | 28mm |
B | 27mm | C | 26mm |
BA | 10.0mm | BC | 43.5mm |
BD | 25.0mm | BE | 54.0mm |
BF | 20.0mm | BG | 7mm |
BH | 8.0mm | D | 20mm |
Thread | M8 | DB | 12mm |
DC | 4mm | Thread | Rc3/8 |
F | 0mm | G | 28mm |
J | 38mm | K | 66mm |
Thread | M18 x 1.5 | L | 41.0mm |
LL + stroke | 126mm | LL | 101mm |
MM | 20mm | MN | 8mm |
MO | 17mm | N | 2.5mm |
Q | 14mm | SD | 48mm |
T | 11mm | V | 20.5mm |
WF | 37mm | X + stroke | 247.5mm |
X | 222.5mm | BB | -mm |
BD1 | -mm | BD2 | -mm |
L1 | -mm | O | 73mm |
P | 43mm | RD | 13mm |
HD | -mm | LA + stroke | -mm |
LA | -mm | LB | -mm |
LC | -mm | LD | -mm |
LF | -mm | LG + stroke | -mm |
LG | -mm | LH | -mm |
LR | -mm | LS | -mm |
LT | -mm | FA + stroke | -mm |
FA | -mm | FC | -mm |
FD | -mm | FF | -mm |
FG + stroke | -mm | FG | -mm |
MT | -mm | FH | -mm |
FJ + stroke | -mm | FJ | -mm |
FL | -mm | FM | -mm |
FT | -mm | CA + stroke | -mm |
CA | -mm | CD | -mm |
CE | -mm | CF | -mm |
CI | -mm | CJ + stroke | -mm |
CJ | -mm | CQ | -mm |
CV | -mm | CW | -mm |
AQ | -mm | AQPLUS | -mm |
TB | -mm | TC | -mm |
TD | -mm | TE | -mm |
TF | -mm | TG | -mm |
TJ | -mm | TM | -mm |
TN | -mm | TK | -mm |
TY + stroke/2 | -mm | TY | -mm |
TZ + stroke/2 | -mm | TZ | -mm |
Specifications may be subject to change without notice
