Product Model

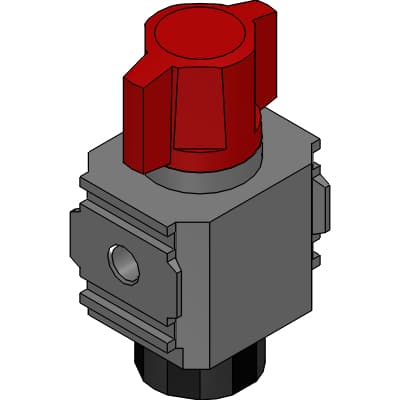

V3000-8-W
Selling Points
- 1Ideal for preventing accidents due to residual pressure in pneumatic lines.
- 2Max working pressure: 1 MPa; withstanding pressure: 1.5 MPa.
- 3Operating temperature range: 5 to 60 °C.
- 4Port size: Rc 1/4; operation lever switching angle: 90°.
- 5Compact design with a product weight of 0.25 kg.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | V3000 | Port size | 8 : 1/4 |
Port thread | Blank : Rc thread | Option | Blank : Standard flow (left → right) |
Displayed unit | Blank : MPa display, Rc thread | Other attachments | Blank : No attachments |
Adaptor thread type | Blank : None | Other attachments | Blank : None |
Specifications may be subject to change without notice
