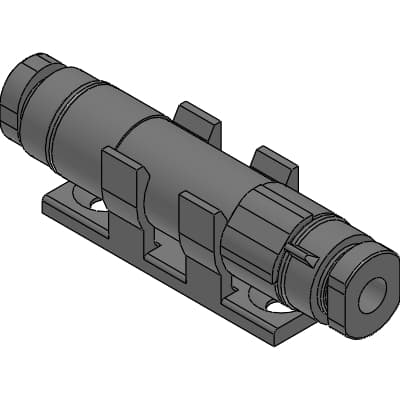

Product Model
VSFU-1S-44
Selling Points
- 1Removes dust and moisture from air to protect vacuum pumps and ejectors.
- 2Small union type with a Ø4 connection tube inlet diameter for easy integration.
- 310μm filtration level ensures effective removal of fine particles.
- 4Acceptable filter replacement design for quick maintenance.
- 5Compatible with various vacuum pipes, including union sizes M5, φ4, φ6, φ8, φ10, φ12.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | VSFU | Filter size | 1S : Filtration area 2.8cm2 (element length: 15mm) |
Vacuum side port size - pad side port size | 44 : ø4 push-in joint - ø4 push-in joint | Tube outer diameter | 4 |
B | 49.1mm | B1 | -mm |
B2 | -mm | B3 | -mm |
B4 | -mm | C | 11.3mm |
L1 | 11.1mm | L2 | 13.0mm |
L3 | 8.5mm | L4 | 4mm |
P1 | -mm | P2 | -mm |
P3 | -mm | X | 9.8mm |
F1 | -mm | F2 | -mm |
Element long | 15mm | Filtration area | 2.8cm2 |
Weight | 5.1g |
Specifications may be subject to change without notice
