Product Model

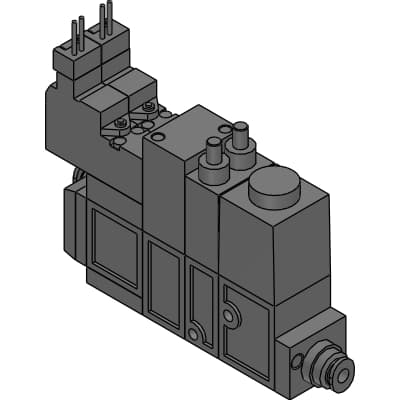

VSJ-H05A-44S-1
Selling Points
- 1High suction flow rates up to 0.42 SCFM (12 r/x ANR) for efficient operation.
- 2Durable construction with metallic body and nickel-plated brass components.
- 3Versatile nozzle sizes available (φ4a to φ12a) to handle different vacuum levels.
- 4Compatible with air supply pressures ranging from 49.8 to 71.1 psi (0.35 to 0.5 MPa).
- 5Ideal for applications requiring precise control and high vacuum performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | VSJ | Vacuum characteristics | H : High vacuum/medium flow type |
Nozzle diameter | 05 : φ0.5 | Valve type | A : Normally open type |
Vacuum port | 4 : φ4 push-in joint | Air supply port | 4 : φ4 push-in joint |
Exhaust port | S : Atmospheric release with silencer | Voltage | 1 : 100 VAC |
Vacuum switch specifications | Blank : Without vacuum switch | C1 | 11.5mm |
C2 | 11.2mm | L1 | 14.9mm |
L2 | 14.6mm | Weight | 156.0g |
Specifications may be subject to change without notice
