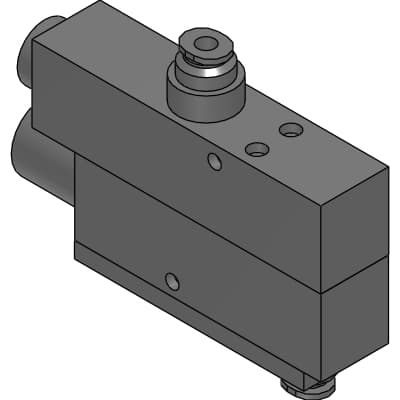

Product Model
VSK-AH05A-44S
Selling Points
- 1Modularized design with selectable nozzle diameters (0.5, 0.7, 1.0, 1.2 mm).
- 2Adjustable intake flow rate from 7 to 50 L/min (ANR) for precise control.
- 3Compatible with solenoid valve and air timer types for customizable vacuum burst.
- 4Built-in switching valve for quick and fine adjustments of burst air.
- 5Versatile for various industrial applications, including pneumatic systems and fluid control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | VSK | Port position | A: Discete type connection port 2 planes |
Vacuum characteristics | H: High vacuum/medium flow type | Nozzle diameter | 05: ø0.5 |
Unit combination | A: Filter | Vacuum port (V) | 4: ø4 push-in joint |
Air supply port (P) | 4: ø4 push-in joint | Exhaust port | S: Atmospheric release with silencer |
Solenoid valve voltage | Blank: No option | Valve type | Blank: No option |
Vacuum switch specifications | Blank: No option |
Specifications may be subject to change without notice
