Product Model

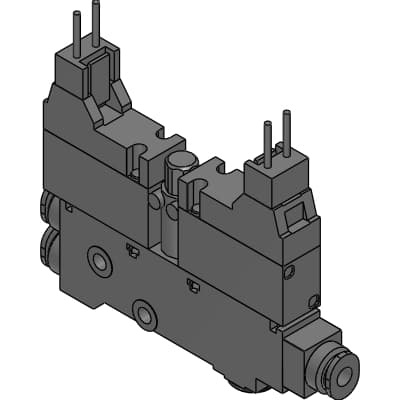

VSN-H05-444S-3
Selling Points
- 1High-Speed Suction: Achieves fast and stable response with direct acting valves.
- 2Compact Design: Ideal for restricted mounting spaces with reduced product height.
- 3Reliable Performance: Integrated ejector and vacuum burst function for consistent results.
- 4Versatile Applications: Suitable for semiconductor manufacturing processes and other industrial needs.
- 5Efficient Operation: Low air consumption and adjustable burst air flow rate for optimal performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | VSN | Vacuum characteristics | H : High vacuum/medium flow rate |
Nozzle diameter | 05 : φ0.5 | Vacuum port (V) | 4 : φ4 straight push-in fitting |
Vacuum generating air supply port (PV) | 4 : φ4 straight push-in fitting | Vacuum burst air supply port (PS) | 4 : φ4 straight push-in fitting |
Exhaust port (EX) | S : Atmospheric release with silencer | Solenoid valve voltage | 3 : 24 VDC |
Vacuum pressure switch specifications | Blank : Without vacuum pressure switch | Weight | 53g |
Specifications may be subject to change without notice
