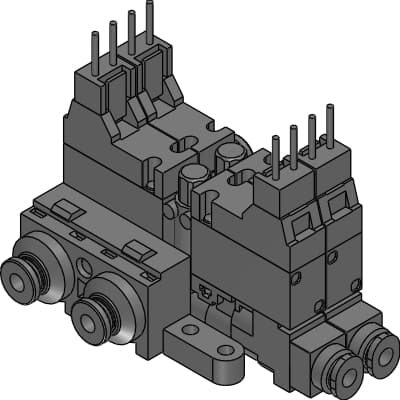

Product Model
VSNPM-44R4R-3-2
Selling Points
- 1Ideal for restricted mounting spaces with reduced product height.
- 2Adopts a direct acting valve for high-speed and stable response (ON/OFF = 5 mm/sec or less).
- 3Four types of analog output available for the pressure sensor.
- 4Available in 3D CAD models for free, compatible with various CAD software.
- 5Manufactured by CKD Corporation, ensuring high precision and reliability in vacuum system components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | VSNPM | Vacuum port (V) | 4 : φ4 straight push-in fitting |
Vacuum supply port(PV) | 4R : 4R | Vacuum burst air supply port(PS) | 4R : 4R |
Manifold station | 2 : 2 station | Vacuum pressure switch specifications | Blank : Without vacuum pressure switch |
Specifications may be subject to change without notice
