Product Model

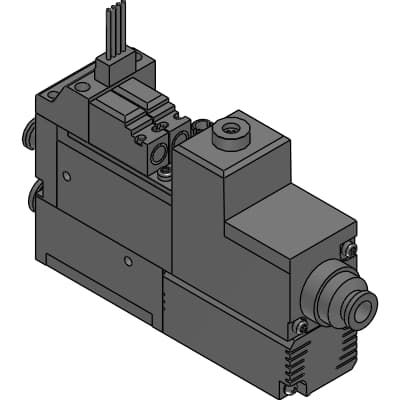

VSQ-H15A-88S-1
Selling Points
- 1High Vacuum Performance: Achieves high vacuum levels with precise control.
- 2Large Flow Rate Control: Designed to manage flow rates up to 180 L/min (ANR).
- 3Adjustable Nozzles: Available in various diameters (φ1.5, φ2.0) for customized use.
- 4Efficient Air Consumption: Optimized for reduced air consumption during transport.
- 5Versatile Application: Suitable for a range of industrial applications requiring high vacuum control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | VSQ | Vacuum characteristics nozzle diameter | H15 : High vacuum/medium flow type_φ1.5 |
Valve type | A : Normally open type | Vacuum port | 8 : φ8 push-in joint |
Air supply port | 8 : φ8 push-in joint | Exhaust port | S : Atmospheric release with silencer |
Solenoid valve voltage | 1 : 100 VAC | Solenoid vavle voltage | Blank : Without vacuum pressure switch |
D1 | 8mm | L1 | -mm |
D2 | 8mm | L2 | 12.2mm |
Specifications may be subject to change without notice
