Product Model

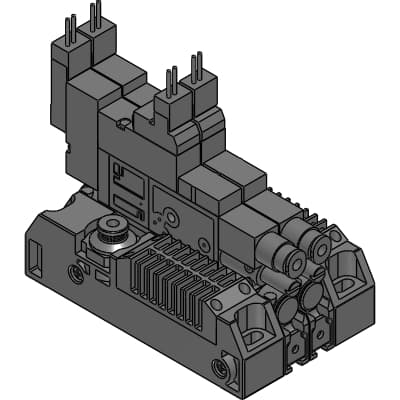

VSXM-H05B-44S-1-2
Selling Points
- 1High Vacuum Performance: Achieves precise vacuum levels with ±0.3% F.S. accuracy.
- 2Durable Construction: Built with metallic body, nickel-plated brass, and stainless steel components for long-lasting reliability.
- 3Versatile Connectivity: Compatible with various thread sizes (M5, φ6mm, φ8mm) and tube diameters (φ4a, φ6a, φ8a).
- 4Efficient Air Flow: Delivers high suction flow rates (up to 0.78 SCFM) for efficient air handling.
- 5Easy Installation: Designed for direct mounting with elbow concentrated exhaust options for streamlined setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | VSXM | Vacuum characteristics | H : High vacuum/medium flow rate |
Nozzle diameter | 05 : φ0.5 | Valve type | B : Normally closed |
Vacuum port | 4 : φ4 push-in fitting | Air supply port | 4 : φ4 push-in fitting |
Exhaust port | S : Atmospheric release with silencer | Solenoid valve voltage | 1 : 100 VAC |
Manifold station No. | 2 : 2 stations | Vacuum pressure switch specifications | Blank : Without vacuum pressure switch |
C1 | 11.2mm | L1 | 0.1mm |
C2 for Air supply port | 15.2mm | L2 for Air supply port | 3.8mm |
C2 for Exhaust port | 20.7mm | L2 for Exhaust port | 13.2mm |
Specifications may be subject to change without notice
