Product Model

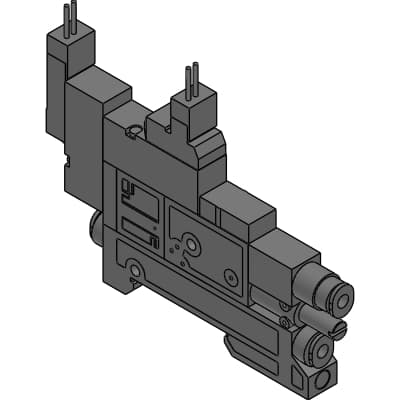

VSXP-D-444-1-D
Selling Points
- 1The VSXP-D-444-1-D features a slim 10.5 mm width, ideal for multiple station installations.
- 2The unit reduces vacuum burst time significantly with its 3-port valve specification.
- 3Suitable for various industries, including those requiring precise vacuum control.
- 4Offers direct mount, side fixing with screws, and DIN rail mount options for flexible installation.
- 5Built with durable materials to withstand operating pressures up to 0.7 MPa.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | VSXP | Valve type | D : 2 way valve specifications |
Vacuum port | 4 : φ4 push-in joint | Air supply port | 4 : φ4 push-in joint |
Vacuum supply port | 4 : φ4 push-in joint | Voltage | 1 : 100 VAC |
Vacuum switch specifications | Blank : Without vacuum switch | Mounting method | D : DIN rail installation type |
C1PV | 11.2mm | C1PS | 11.2mm |
C2 | 11.2mm | L1PV | 6.1mm |
L1PS | 6.1mm | L2 | 7.5mm |
Weight | 80g |
Specifications may be subject to change without notice
