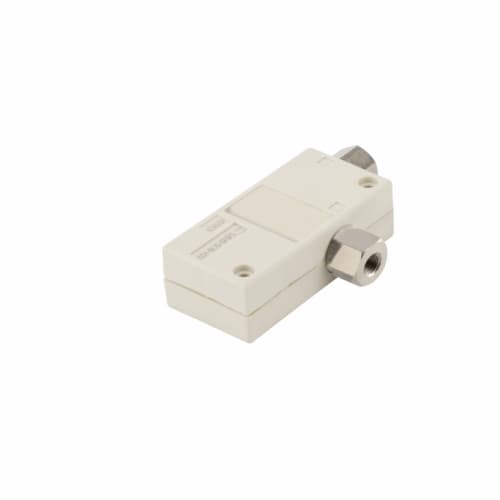

Product Model
VZH-BH10-66S
Selling Points
- 1Modular design with selectable nozzle diameters (0.5, 0.7, 1.0, 1.2 mm) for customized performance.
- 2Wide intake flow rate range (7 to 50 L/min ANR) for efficient operation.
- 3Compatible with solenoid and air timer vacuum burst valves for precise adjustments.
- 4Built-in switching valve for quick air blow and fine burst air adjustments.
- 5Ideal for use in pneumatic systems, fluid control, and high-vacuum applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | VZH | Performance specification | H : High vacuum type(-88kPa) |
Nozzle diameter | 10：Φ1.0mm | Vacuum port | 6 : Φ6 quick fittings |
Air supply port | 6 : Φ6 quick fittings | Exhaust port | S : Muffler |
A | 63.0mm | B | 18.0mm |
C | 32.0mm | D | 5.8mm |
E | 2mm | F | 3.2mm |
G | 50.0mm | H | 23mm |
Q | 26.0mm | L | 6mm |
M | -mm | K | 5.0mm |
J | 6mm |
Specifications may be subject to change without notice
