Product Model

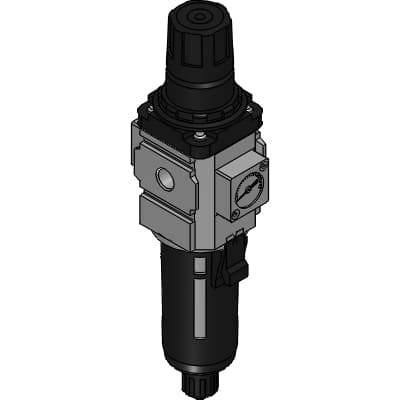

W2100-8-W
Selling Points
- 1Precise Air Management: The CKD W2100-8-W ensures clean and regulated air flow with its integrated filter and regulator.
- 2Durable Construction: Built with high-quality polycarbonate material for long-lasting performance.
- 3Versatile Port Options: Available in Rc1/4 port size for easy integration into various pneumatic systems.
- 4Wide Pressure Range: Operates within a pressure range of 0.05-0.85 MPa for versatile applications.
- 5Reliable Drainage System: Features a drain storage capacity of 25 cm³ for efficient liquid management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | W2100 | Port size | 8 : 1/4 |
Port thread | Blank : Rc thread | Drain discharge | Blank : Manual drain cock |
Bowl material | Blank : Polycarbonate bowl | Element | Blank : 5μm |
Pressure range | Blank : 0.05 to 0.85 MPa | Relief | Blank : With relief mechanism |
Pressure gauge | Blank : Standard pressure gauge (G401-W) | Flow direction | Blank : Standard flow (left → right) |
Display unit | Blank : MPa display (Rc thread), psi display (NPT thread), bar display (G thread) | Piping adaptor set (included) | Blank : Not included |
Adaptor thread | Blank : None | Other attachments (bracket) | Blank : Not included |
Other attachments (Pressure gauge) | Blank : Not included | Other attachments (pressure sensor) | Blank : Not included |
Specifications may be subject to change without notice
