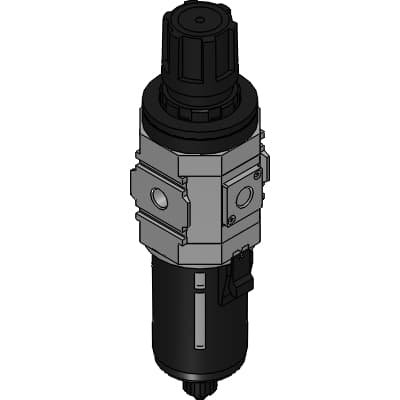

Product Model
W3000-8-W-TP6
Selling Points
- 1Integrated Filter and Regulator: Combines filtration and regulation in one unit.
- 2High Filtration Efficiency: 5μm elements for dust removal and 0.3μm elements for tar removal.
- 3Copper and PTFE-Free: Suitable for applications requiring non-toxic materials.
- 4Ozone-Proof Option: Available in ozone-proof variant for sensitive environments.
- 5Long Service Life: Elements designed with a rough surface and fine interior for extended life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | W3000 | Port size | 8 : 1/4 |
Port thread type | Blank : Rc thread | Drainage | Blank :With manual drain cock |
Bowl material | Blank : Polycarbonate bowl | Element | Blank : 5μm |
Pressure range | Blank : 0.05 to 0.85 MPa | Relief | Blank : With relief mechanism |
Pressure gauge | T : Without pressure gauge (gauge port (Rc1/4) assembled sealed) | Flow direction | Blank : Standard flow (left to right) |
Displayed unit | Blank : MPa display, Rc thread | Piping adaptor set (included) | Blank : Not attached |
Adaptor thread type | Blank : None | Attachment bracket type | Blank : Not attached |
Infotext | https://www.ckd.co.jp/kiki/en/product/detail/364/W%E2%80%BB000-P6?t=list&cid=67&sid=0 |
Specifications may be subject to change without notice
