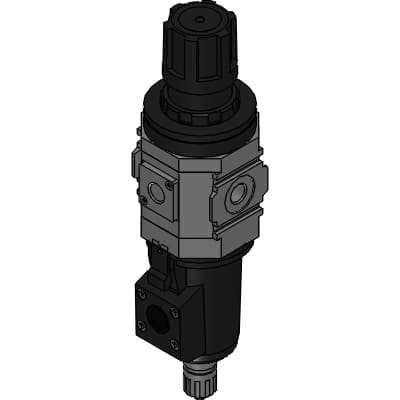

Product Model
W4000-8-G4-T
Selling Points
- 1Compact modularization with unified dimensions for easy integration.
- 2Unique chemical fiber element with long service lifespan and reduced clogs.
- 3Space-saving recessed pressure gauge design for improved safety and reduced weight.
- 4High-quality filtration with a 5μm filter rating for clean compressed air.
- 5Auto-drain feature ensures efficient operation and minimizes downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | W4000 | Port size | 8 : 1/4 |
PTT | Blank : Rc thread | Drainage | Blank :With manual drain cock |
Bowl material | Blank : Metal bowl (resin cock) | Element | Blank : 5μm |
Pressure range | Blank : 0.05 to 0.85 MPa | Relief | Blank : With relief mechanism |
Pressure gauge | T : Without pressure gauge (gauge port (Rc1/4) assembled seald) | Flow direction | Blank : Standard flow (left → right) |
Displayed unit | Blank : MPa display, Rc thread | Pipe adaptor set (attachements) | Blank : Not attached |
Adaptor thread type | Blank : None | Bracket(attachments) | Blank : Not attached |
Gauge(attachments) | Blank : Not attached | Infotext | https://www.ckd.co.jp/kiki/en/product/detail/365/W%E2%80%BB%E2%80%BB00-G4?t=list&cid=67&sid=0 |
Specifications may be subject to change without notice
