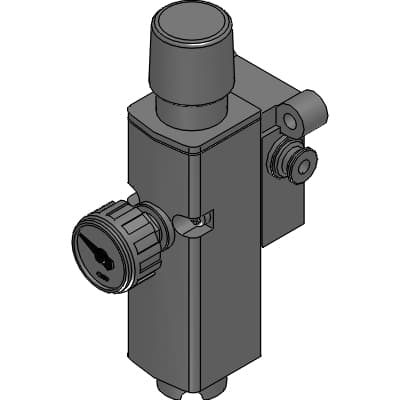

Product Model
WB500-SSC4
Selling Points
- 1Integrated push-in joint and bracket reduce total space.
- 2Resin body material minimizes weight.
- 3Standard push-in joint with straight or elbow piping options.
- 4Simple and efficient plumbing setup.
- 5With relief mechanism and adjustable pressure settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | WB500 | Connection direction IN | S : Straight |
Connection direction OUT | S : Straight | Port size | C4 : φ 4 |
Panel mount | Blank : Without nut | Pressure range | Blank : 0.05 to 0.7MPa (pressure gauge: G29D-6-P10) |
Relief | Blank : Relief type | Pressure gauge | Blank : With pressure gauge |
Flow direction | Blank : Standard flow (left → right) | Drain plug material | Blank : Polycarbonate |
Infotext | https://www.ckd.co.jp/kiki/en/product/detail/362/WB500?t=list&cid=67&sid=0 |
Specifications may be subject to change without notice
