Product Model

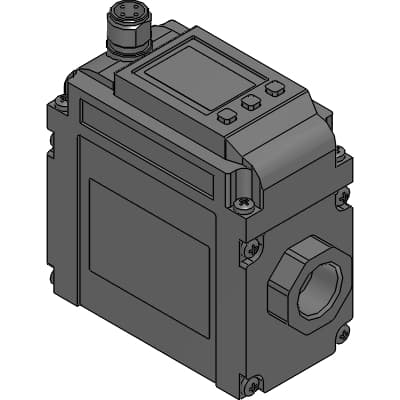

WFC-150-10A-C
Selling Points
- 1High Accuracy Measurement: ±2.0% F.S. repeatability ensures precise flow rate measurement.
- 2Wide Fluid Temperature Range: Operates from 0 to 85°C, suitable for various industrial environments.
- 3Versatile Port Sizes: Available in Rc3/8, G3/8, and 3/8NPT, accommodating different piping configurations.
- 4IO-Link Compatibility: Enables fluid temperature measurement and advanced communication capabilities.
- 5Durable Design: Constructed to withstand conductive fluids without corroding wetted part materials.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | WFC | Flow rate range | 150: 0.5 to 15L/min |
Port size | 10: 3/8 | Thread type | A: Rc Thread |
IO-Link / Measure for fluid temperature | C: IO-Link | Option (cable) | Blank: None |
Option (bracket) | Blank: None | A | 90.000mm |
B | Rc3/8mm |
Specifications may be subject to change without notice
