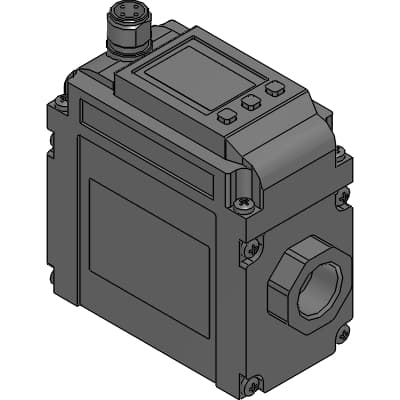

Product Model
WFC-150-10A-NV
Selling Points
- 1High accuracy flow rate measurement with ±2.0% F.S. repeatability.
- 2Versatile port sizes: Rc3/8, G3/8, and 3/8NPT for various applications.
- 3Compatible with IO-Link for fluid temperature measurement functionality.
- 4Operating ambient temperature range: 0 to 50°C with IP65 degree of protection.
- 5Compact design with cable and bracket options for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | WFC | Flow rate range | 150: 0.5 to 15L/min |
Port size | 10: 3/8 | Thread type | A: Rc Thread |
Switch output | N: NPN transistor output | Analog output | V: Voltage output (1 to 5V) |
Option (cable) | Blank: None | Option (bracket) | Blank: None |
A | 90.000mm | B | Rc3/8mm |
Specifications may be subject to change without notice
