CKD CorporationFittings/tubes
Product Model

ZSP-B12-15

Manufacturer

CKD Corporation

Category

Fittings/tubes

Product ID

51009

In Stock
Last updated: 2025/4/17
View Specifications

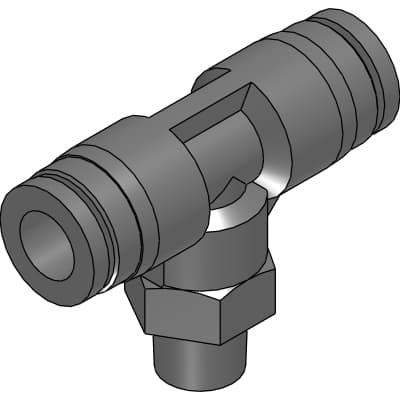

CKD Corporation ZSP-B12-15

Selling Points

  • 1Durable stainless steel construction (EN 1.4305 equivalent) for long-lasting performance.
  • 2Single-action coupling with screw mount direction for easy installation.
  • 3Compatible with air fluids and suitable for various pneumatic applications.
  • 4Compact design with a compatible tube outer diameter of 12 mm.
  • 5Fast delivery time of 9 days for quick project completion.
Product Details
ZSP-B12-15
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
ZSP-B12-15
Applicable tube outer diameter φ
12mm
Thread
R1/2mm
A
15.0mm
L1
42.0mm
G
44.3mm
C1
19.8mm
C2
21.0mm
B
22.9mm
L2
28.4mm
L3
56.8mm
H
21mm
Effective cross section area
47.0mm^2
Weight
73.0g

Specifications may be subject to change without notice
