Product Model

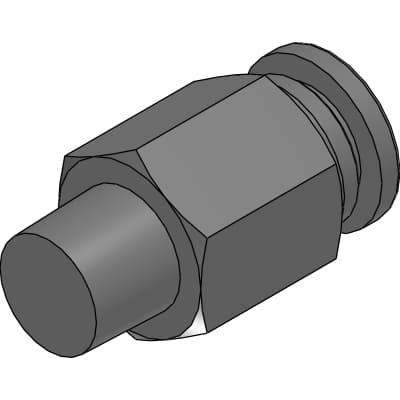

ZSP-C8-6
Selling Points
- 1Made from stainless steel (SUS303 or equivalent) for use in corrosive atmospheres.
- 2Offers a wide range of variations for various types of pneumatic piping.
- 3Compliant with the RoHS Directive, eliminating harmful substances from materials.
- 4Utilizes high-quality stainless steel for durability and reliability.
- 5Push-in fittings ensure easy and quick installation in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | ZSP-C8-6 | Applicable tube outer diameter φ | 8mm |
Thread | R1/8mm | A | 8.0mm |
L | 27.9mm | G | 23.9mm |
B | 18.2mm | C | 13.8mm |
H | 14.0mm | Effective cross section area | 20.0mm^2 |
Weight | 14.0g |
Specifications may be subject to change without notice
