Product Model

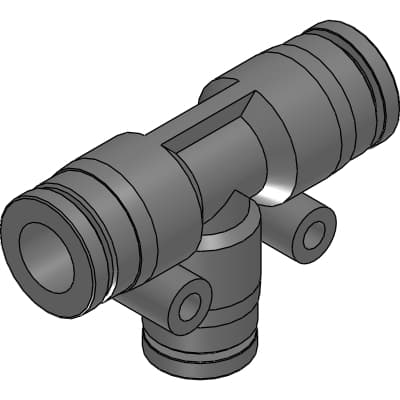

ZSP-EG6-4
Selling Points
- 1Stainless Steel Construction: Made from high-quality stainless steel (SUS303 or equivalent) for durability and resistance to corrosive atmospheres.
- 2Diverse Model Variations: Offers a wide range of model variations to suit various pneumatic piping needs.
- 3Environment-Friendly: Compliant with the RoHS Directive, ensuring all substances harmful to the environment are eliminated.
- 4Perfect for Pneumatic Systems: Essential component in pneumatic systems, providing a reliable link between tubes and hoses.
- 5High Precision Dimensions: Available in precise dimensions (e.g., ZSP-EG6-4) for accurate fitting and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | ZSP-EG6-4 | Applicable tube outer diameter φ | 6mm |
Applicable tube outer diameter φ | 4mm | C1 | 11.8mm |
C2 | 9.9mm | C3 | 13.0mm |
C4 | 13.0mm | B1 | 17.0mm |
B2 | 14.9mm | L2 | 20.05mm |
L3 | 40.1mm | E | 3.2mm |
N1 | 8mm | N2 | 16mm |
L1 | 19.5mm | F | 13.5mm |
Effective cross section area | 4.1mm^2 | Weight | 11g |
Specifications may be subject to change without notice
