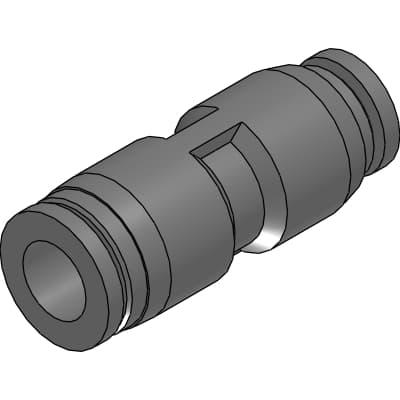

Product Model
ZSP-G12-10
Selling Points
- 1Durable stainless steel construction for corrosion resistance.
- 2Versatile port sizes including M5, R1/8 to 1/2 for diverse piping needs.
- 3Compatible with tube O.D. ranging from ø4 to ø12 for flexible installation.
- 4High working pressure up to 1.0 MPa (≈150 psi) and negative pressure up to -100 kPa.
- 5Environment-friendly with RoHS Directive compliance, ensuring eco-friendliness.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | ZSP-G12-10 | Applicable tube outer diameter φ A side | 12mm |
Applicable tube outer diameter φ B side | 10mm | L | 47.6mm |
C1 | 19.8mm | C2 | 16.3mm |
C3 | 21.0mm | B1 | 23.4mm |
B2 | 20.2mm | Effective cross section area | 35.0mm^2 |
Weight | 20.0g |
Specifications may be subject to change without notice
