Product Model

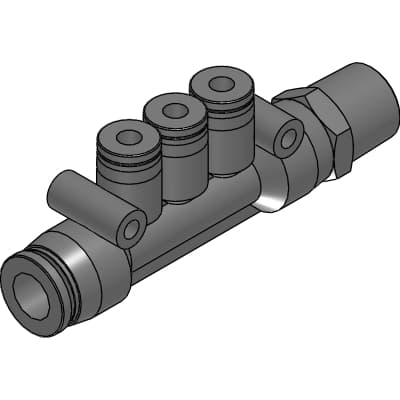

ZSP-KD8-4-8

Selling Points
- 1Built with robust materials for long-lasting performance in demanding applications.
- 2Extremely fine and flexible tubing suitable for piping in narrow spaces and tight areas.
- 3Made with high corrosion-resistant materials, ideal for use in cleanrooms and environments requiring high cleanliness.
- 4Push-in joints with standard sealant application for quick and secure connections.
- 5Suitable for various pneumatic systems, including speed control valves, check valves, and air dryers.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Model no. | ZSP-KD8-4-8 | Applicable tube outer diameter φ | 8mm |
Applicable tube outer diameter φ | 4mm | Thread | R1/4 |
A | 11mm | L1 | 73.7mm |
L2 | 19.2mm | G1 | 36.5mm |
G2 | 31.2mm | P1 | 10mm |
P2 | 10mm | C1 | 13.8mm |
C2 | 9.9mm | C3 | 15.0mm |
C4 | 10mm | B1 | 18.1mm |
B2 | 14.9mm | N1 | 34.0mm |
N2 | 9.2mm | E | 3.3mm |
H | 14mm | F | 15.0mm |
Effective cross section area | 5.2mm^2 | Weight | 31g |
Specifications may be subject to change without notice
