Product Model

ZSP-KG6-4

In Stock
Last updated: 2025/4/21

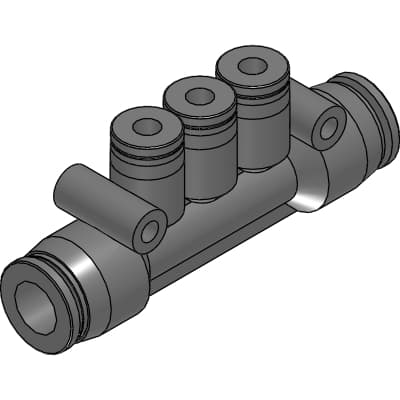

CKD Corporation ZSP-KG6-4

Selling Points

  • 1High-quality stainless steel body (SUS303) for durability and resistance to corrosive atmospheres.
  • 2Diverse range of model variations for various pneumatic piping needs.
  • 3Environment-friendly products, compliant with the RoHS Directive to minimize environmental impact.
  • 4Perfect for use in corrosive or copper-ion susceptible atmospheres.
  • 5Compatible with a wide range of tube sizes, including ø4, ø6, and ø8.
Product Details
ZSP-KG6-4
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
ZSP-KG6-4
Applicable tube outer diameter φ
6mm
Applicable tube outer diameter φ
4mm
L1
60.1mm
L2
30.05mm
L3
18.4mm
P1
10mm
P2
10mm
C1
11.8mm
C2
9.9mm
C3
13.0mm
C4
10mm
B1
17.0mm
B2
14.9mm
N1
34.0mm
N2
8.0mm
E
3.3mm
F
13.0mm
Effective cross section area
5.0mm^2
Weight
15g

Specifications may be subject to change without notice
