CKD CorporationFittings/tubes
Product Model

ZSP-L6-10

Manufacturer

CKD Corporation

Category

Fittings/tubes

Product ID

52050

In Stock
Last updated: 2025/4/21
View Specifications

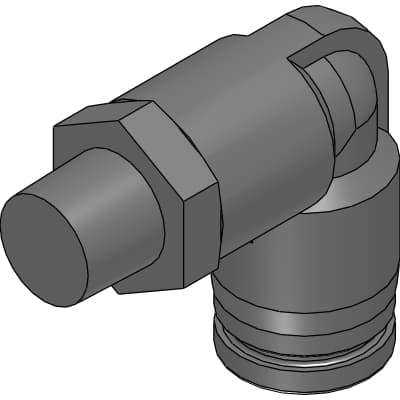

CKD Corporation ZSP-L6-10

Selling Points

  • 1High-Quality Stainless Steel Material: Made from SUS303 or equivalent stainless steel for durability and resistance to corrosive atmospheres.
  • 2Versatile Pneumatic Applications: Suitable for a wide range of pneumatic piping applications, ensuring reliable connections.
  • 3Environmentally Friendly: Compliant with the RoHS Directive, eliminating harmful substances that affect the global environment.
  • 4Diverse Model Variations: Offers various model variations to cater to different pneumatic piping needs.
  • 5Oil and Dust Resistant: Designed with oil and dust resistance specifications, ensuring long-lasting performance in harsh environments.
Product Details
ZSP-L6-10
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
ZSP-L6-10
Applicable tube outer diameter φ
6mm
Thread
R3/8mm
A
12.0mm
L1
29.8mm
G1
29.7mm
C1
11.8mm
C2
12.0mm
B
16.8mm
L2
19.8mm
H
17mm
Effective cross section area
10.0mm^2
Weight
32.0g

Specifications may be subject to change without notice
