Product Model

ZSP-RG8-6

In Stock
Last updated: 2025/4/18

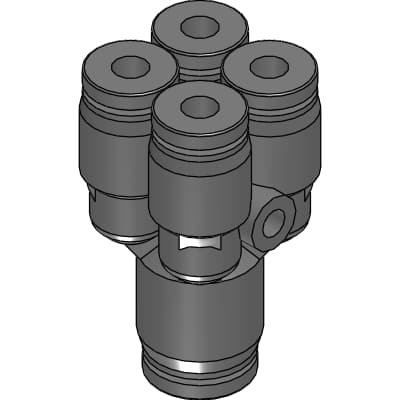

CKD Corporation ZSP-RG8-6

Selling Points

  • 1Made from stainless steel (SUS303 or equivalent) for use in corrosive atmospheres.
  • 2Suitable for a wide range of pneumatic piping applications, including semiconductor manufacturing and cleanrooms.
  • 3Designed to handle high flow rates while maintaining flexibility in tight spaces.
  • 4Compliant with the RoHS Directive, ensuring all harmful substances are eliminated from materials.
  • 5Push-in design simplifies installation and reduces air consumption by up to 75% with intermittent air (pulse blowing).
Product Details
ZSP-RG8-6
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
ZSP-RG8-6
Applicable tube outer diameter φ
8mm
Applicable tube outer diameter φ
6mm
L
42.0mm
C1
13.8mm
C2
11.8mm
C3
14mm
C4
13.0mm
B1
18.2mm
B2
17.0mm
P1
13mm
P2
13mm
E
3.5mm
N
15.8mm
F
26.0mm
Effective cross section area
8.2mm^2
Weight
20g

Specifications may be subject to change without notice
